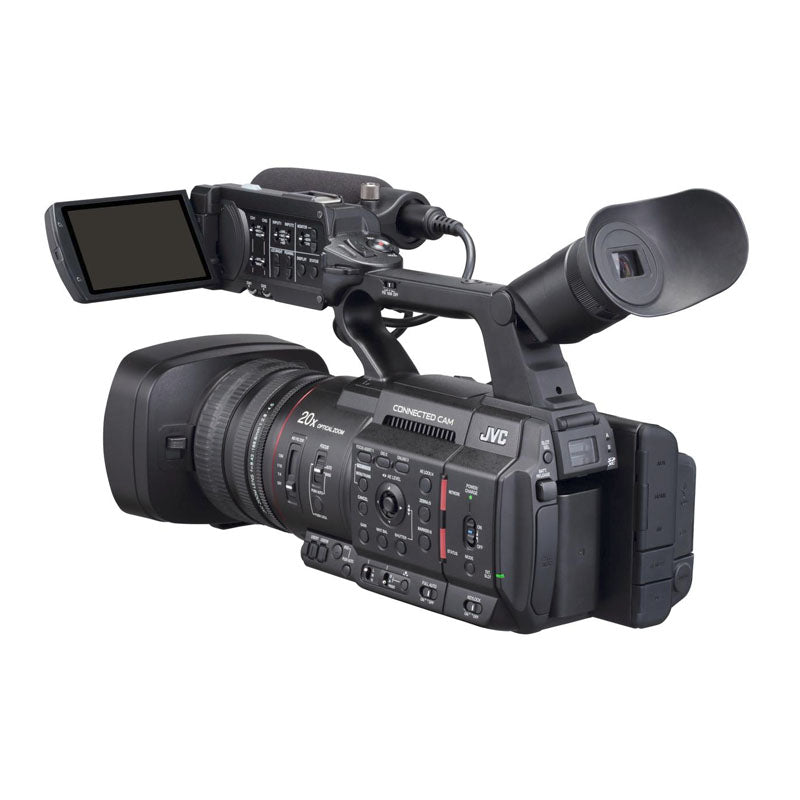

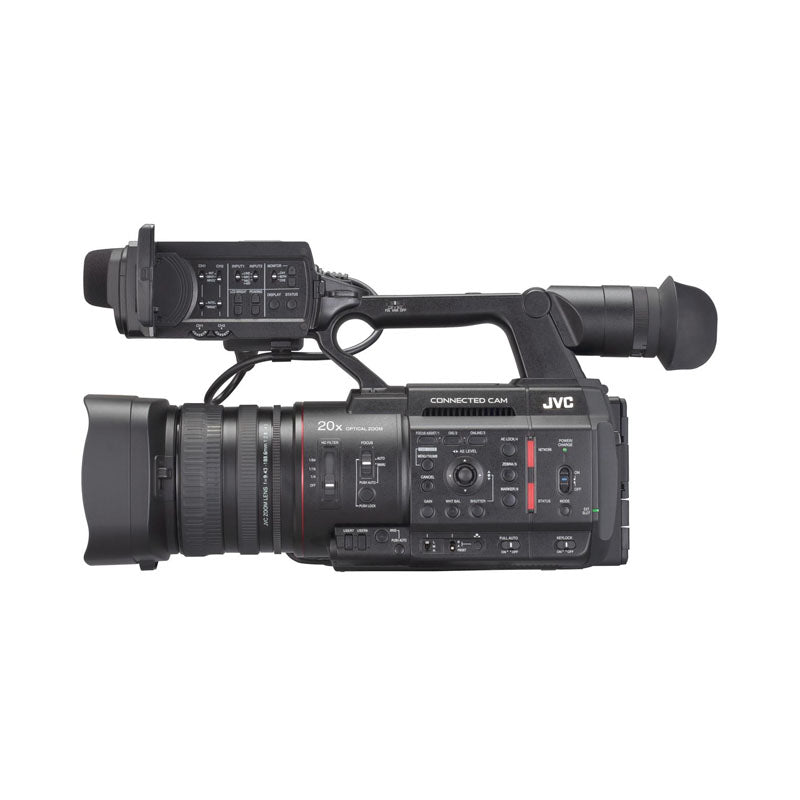

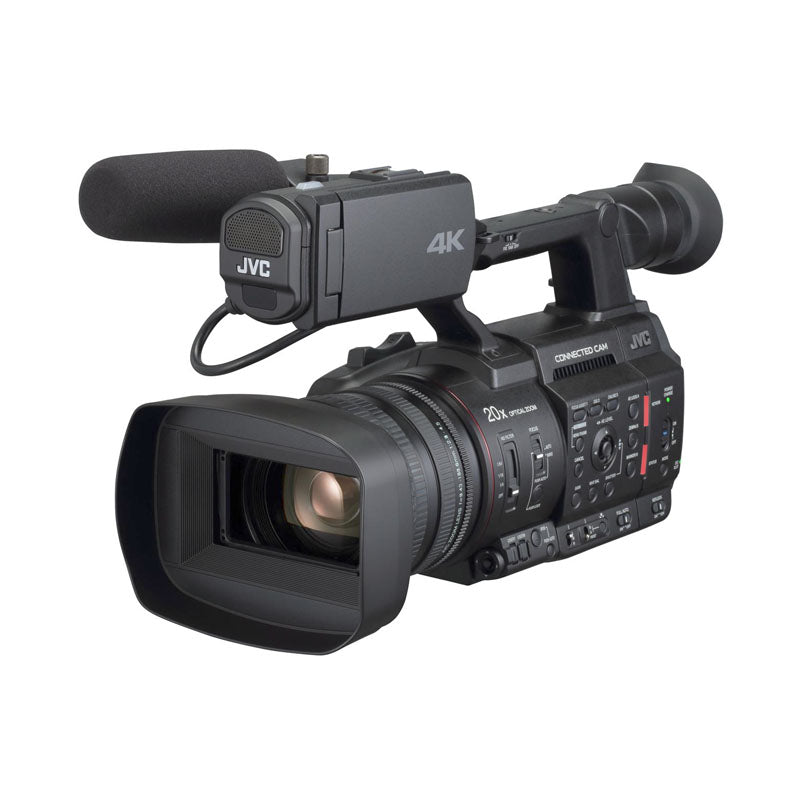

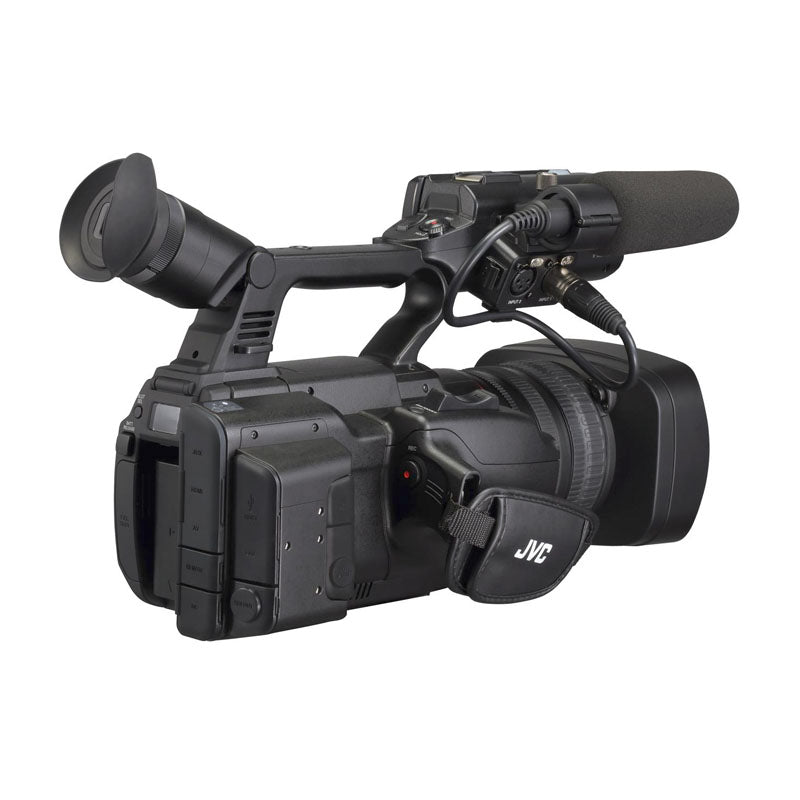

The GY-HC500 is a handheld 4K production camcorder that can be upgraded to support NDI|HX, ideal for ENG, production and sports, featuring a 1-inch sensor and live streaming. It offers uncompromised live and recorded image quality, with exceptional IP connectivity features. Shoot 4K Ultra HD with HDR and record to SSD media in a wide variety of formats, including 10-bit ProRes 422 at 4K resolution and 50/60p frame rates.
Features
- 4K Rec + HD streaming + 4K HDMI output
- 4K UHD 60p/50p ProRes 4:2:2 10-bit recording to SSD*
- HDR recording, HLG or J-Log1 (10-bit)
- 4K UHD 30p/25p/24p 4:2:0 8-bit recording to SDHC/SDXC card
- 1" (effective) CMOS sensor with high picture quality
- F12 Sensitivity
- Newly-developed 4K lens with 20x zoom
- High performance 1080 60p/50p live streaming
- Low latency and high-quality streaming up to 20Mbps
- Return over IP (Return video and IFB)
- Auto FTP to upload native video clips automatically
- LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
- 4-inch high resolution LCD monitor
- 40x lossless dynamic zoom
- XLR audio connectors
- HD Recording to SSD*
- New SRT and RTMPS Streaming protocol
- Progressive Auto FTP File transfer
- SSD* Back up recording
- NTP support for Time-synchronization
Info
Camera Front-End Specifications
- Image Sensor (inch)
- 1" (effective) CMOS
- Number of Sensors
- 1
- Mega Pixels
- 9,35 mio
- Sensitivity in F at 2000 Lux
- F 12
- Shutter speed
- 1/6 to 1/10000
- White Balance modes
- FAW, AWA, 3200K, 5600K, Manual
- Color Matrix adjustment
- Yes
- Wide Dynamic Range Mode (WDR)
- Yes
- HDR (High Dynamic Range)
- Yes, HLG/JLOG 1
- LOG Mode
- Yes, J-LOG HLR
- User selected function buttons
- Yes
- User Customizes Menu
- Yes
Optical Specifications
- Lens mount
- Internal
- Optical Zoom X times
- 20
- Dynamic Zoom x times
- 40
- Lens F Number
- 2.8 to 4.5
- Lens ratio from / to
- 9.43mm to 188.6mm
- Lens ratio equivalent to 35mm
- 28mm to 560mm
- Auto Focus
- Yes
- Optical Image stabilization
- Yes
- Filter Diameter in mm
- 82mm
- Build in ND Filters
- 3 Filters: 1/4, 1/16, 1/64 plus OPEN
Recording Formats
- Media
- SDHC/SDXC memory card x 2 plus M2 SSD Slot with Adapter* optional
- Media Class
- 4K/70 Mbps,HD and below Class 10 4K/150Mbps UHS1-U3 (no UHS-2)
- Recording slots
- 3
- Encoder
- ProRes, MPEG-4 AVC/H.264 (HD/SD),
- ProRes Recording [1]
- Yes
- File Format MOV
- Yes
- File Format MP4
- Yes
- Video Codec MPEG4 AVC/H264 4K/HD
- Yes
- Video Codec H264 (SD)
- Yes
- Video Codec others
- 4K UHD ProRes / Proxy H264
- Recording Resolution Formats
-
- Resolution 3840 x 2160
- Yes, 4K UHD 60p/50p (ProRes) 422HQ/422/422LT 10-bit
4K UHD 30p/25p/24p (H.264) 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps
- Resolution 1920 x 1080
- Yes
- Resolution 1280 x720
- Yes
- Resolution 720 x 576
- Yes, 50i
- Resolution 960 x 540
- Yes
- Resolution 480 x 270
- Yes
- SD Recording
- Yes
- Audio Channels
- 2
- Audio Recording modes
- LPCM 2ch, 48kHz/16-bit, µ-Law 2ch (Proxy), AAC 2ch (MP4)
- Audio Filters
- Yes
IP Section of the Product
- IP Main Connection
- USB A Host, Ethernet LAN RJ45 1000Base-T
- IP Connection supports
- Ethernet, WIFI - and LTE USB Adapters
- IP Build in WIFI-Band aera support
-
- IP Features Live-Streaming
- Yes
- IP Features Remote
- Yes, via RM-LP100 or Web-Browser no apps needed
- IP Features FTP
- Yes, Different protocols
- IP Features Auto FTP Upload
- Yes
- IP Features Meta-Data
- Yes, Local and Remote editing and data exchange
- IP Features IFB (Audio-Return via IP)
- Yes, with optional Audio encoder AAC Format
- IP Video Return stream
- Yes
- Live-Streaming Bitrates
- 1920 x 1080 (59.94p/50p) 20 – 8Mbps, (29.97p/25p) 20 – 3Mbps, 1920 x 1080 (59.94i/50i) 20 – 3Mbps,
1280 x 720 (59.94p/50p) 20 – 3Mbps, 1280 x 720 (29.97p/25p) 8 – 1.5Mbps,
640 x 360 (59.94p/50p) 3/1.5Mbps, 640 x 360 (29.97p/25p) 3 – 0.3Mbps
- Live-Streaming Protocols
- RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP, SRT
- Live-Streaming Single cast
- Yes
- Live-Streaming Multicast
- Yes
- Live-Streaming reconnect
- Yes
- Live-Streaming and simultaneous REC
- Yes
- Live-Streaming Pre-sets of destinations
- 4
- FTP Protocol formats
- FTP / SFTP / FTPS
- FTP upload during REC
- Yes
- FTP servers presets
- 4
- Meta-Data presets of servers
- 3
- Note for all kind of USB Adapters
- The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!
Special Features
IN-OUT´s Connections
- OUT HDSDI
- Yes, 3G HDSDI
- OUT HDSDI Format max.
- 1080/60p,50p 10 Bit 4:2:2 EE
- OUT HDMI
- Yes
- OUT HDMI Format max.
- UHD
- OUT Audio Headphone
- Yes, 1 times 3.5mm mini jack
- IN Audio XLR MIC/LINE
- Yes, 2 CH with +48 V Mic and Line support
- IN Audio AUX
- Yes, 3.5 mm mini jack
- Time code IN/OUT
- Yes
- Wired remote IN
- Yes, serial LANC 2.5mm mini jack
- USB HOST
- Yes
- Option Slot
- SSD Caddy Support
EVF and LCD
- Operation Panel Type
- LCD
- Operation Panel Resolution
- WVGA (800 x 480), 800 x 450 at 16:9
- Operation Panel Size diagonal in inch
- 3.97
- Electronic Viewfinder (EVF) Type
- LCOS
- Electronic Viewfinder (EVF) Resolution
- Quad VGA (1280 x 960), 1280 x 720 at 16:9
- Electronic Viewfinder (EVF) Size diagonal in inch
- 0.4
Power and Enviroment Spec´s
- Power AC
- Yes, DV12V(AC Adapter)
- Power DC
- Yes, 7,2 Volt Battery BN-VC264
- Battery types
- BN-VC264
- Power consumption
- 17,5 Watt
Mechanical Informations
- Weight in kg
- 3,1 kg
- Measurements (WxHxD) in mm
- W 195 x H 230 x D 445
- Battery
- Yes, BN-VC296G
- AC/DC adapter
- Yes, AC Adapter
- Cable 1
- Yes, Power cord
- Additional
- Yes, Lens Cap
