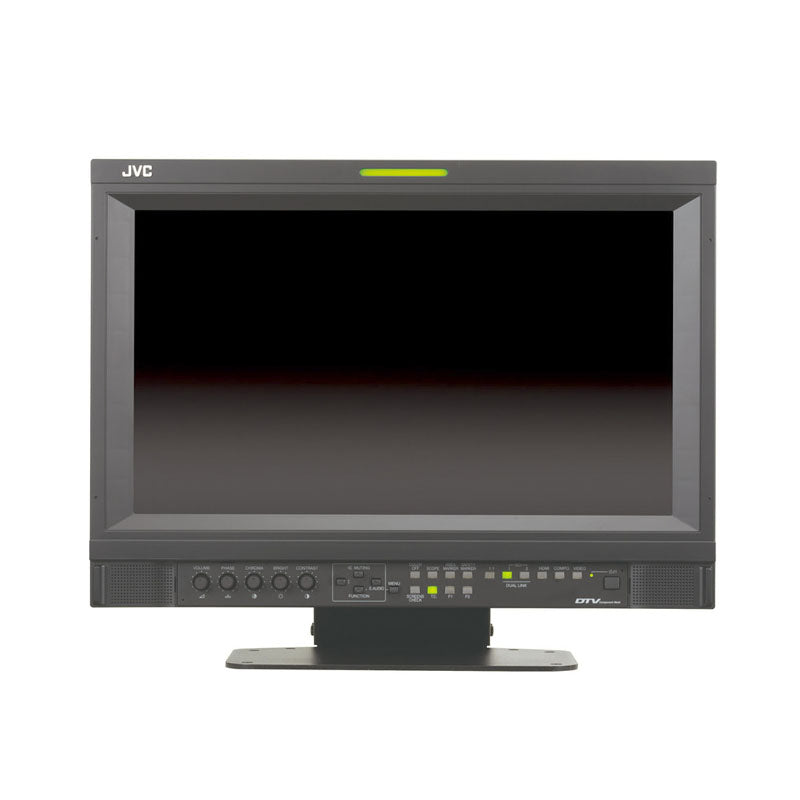

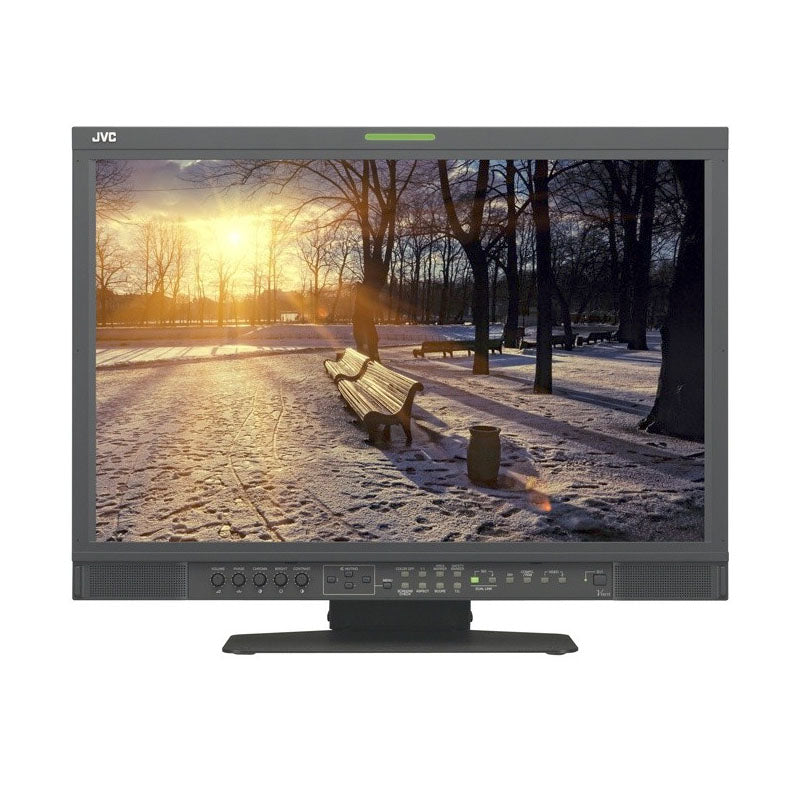

JVC DT-V17G25EA 17" Full HD LCD HD-SDI / SDI Studio Monitor
De JVC DT-V17G25EA is een Full HD LCD monitor welke zeer geschikt is voor broadcast toepassingen.
Aanbieding
The DT-V17G25 monitor from JVC, is equipped with a 10-bit IPS LCD panel, which surpasses the EBU Class 2 requirements in terms of colour space, gamma and gradation.
Features
- Pixel-by-pixel (1:1) display
- Tiltable stand with 2-way installation capability
- Color Temperature settings (9,300K, 6,500K, 5,600K or User mode)
- IP modes: Normal, Field, and Cinema (24p)
- High 1500:1 Contrast Ratio
- Built-in Histogram, Waveform, Vector Scope, Zebra
- Carrying handle
- Full HD resolution: 1920 x 1080 pixels
- Optimized I-P conversion
- Built-in Audio Level Meter up to 16ch
- Lissajous audio metering
- 17-inch class 10 BIT IPS panel with 1.073 billion color reproduction
- Fully capable of displaying 2048 x 1080/24p (DCI 2K) signal
- Two 3G-SDI & Dual Link inputs
- IMD (in monitor display)
- 3 Gamma Preset Modes
- Wide array of markers and indicators
Panel Specifications
- Panel size (diagonal in inch)
- 16.5
- Panel resolution
- 1920 X 1080 Pixels
- Panel Aspect Ratio
- 16 to 9
- Panel Type LCD
- Yes
- Panel Modulation IPS
- Yes
- Back-light LED
- Yes
- Brightness in cd/m²
- 450
- Panel Bit depth:
- 10
- Image Processing Bit depth
- 10
- Panel response times in ms
- 8 ms
- Viewing angle H/V
- H 178 / V 178
- Contrast Ratio
- 1500:1
IN-OUT´s Connections VIDEO
- Input HDSDI
- Yes, 3G
- Number of HDSDI Inputs
- 2
- HDSDI DUAL LINK
- Yes
- Input HDMI
- Yes
- Number of HDMI Inputs
- 1
- HDMI HDCP
- Yes
- Input YUV
- Yes, 3 x BNC
- Input Composite
- Yes
- Numbers of Composite Inputs
- 2
- Loop out HDSDI
- Yes, 2 with bridge function
- Loop out Composite
- Yes
IN-OUT connections AUDIO
- Audio Line IN
- Yes, 2 x RCA and 1 x 3.5mm mini jack
- Audio Embedded Channel out
- Yes, selectable
- Speaker integrated
- Yes, 2
- Watts
- 2 X 1 Watts
IN-OUT Connections Controls
- GPI IN
- Yes, RJ45
- RS485/422 IN
- Yes, RJ45
- RS485/422 Loop out
- Yes
- RS232 IN
- Yes, 9 Pin Sub D
- Service Port
- Yes, internal
Supported Signal Formats
- Note for SMPTE/ITU Definitions
- SMPTE or ITU definitions have servile specification in-between, like SMPTE 274 for Interlace Frames rates for example, this is not reflecting here! Please ask for details Signal Spec´s and Frame-rate supports
- HDSDI/SD Signal Formats SMPTE-424M
- Yes
- HDSDI/SD Signal Formats SMPTE-425M-A/B
- Yes
- HDSDI/SD Signal Formatss BTA S-004C
- Yes
- HDSDI/SD Signal Format SMPTE-292M
- Yes
- HDSDI/SD Signal Formats DUAL-LINK or 3G SMPTE-372M-2002
- Yes
- HDSDI/SD Signal Formats ITU-R BT656
- Yes
- SDI SIgnal Formats SMPTE-259M
- Yes
- Signal Format ITU BT601-7
- Yes
- Signal Format SMPTE-299M
- Yes
- Signal Format SMPTE-272M
- Yes
- HDMI Format 1080P plus
- up to 1080P
- Composite
- Yes, PAL/NTSC
Dedicate Functions
- SDI Timecode
- Yes, LTC, VITC, and D-VITC
- R/G/B/Mono
- Yes
- H/V delay
- Yes, only with special upgrade
- Field/Frame mode
- Yes, Field 1 / Field 2 / Reverse only with special upgrade
- Scan Modes
- Progressive,/Field Cinema 3:2 pull down / 1:1
- Safety area markers
- Yes, 80% to 100%
- Center Marker
- Yes
- Scale Markers
- Yes, 4:3/16:9/14:9/13:9/2.35:1/1.85:1/1.75:11.66:1
- Area Marker Visibility
- OFF,Line,Half,Half+Line
- Tally via GPI
- Yes
- Tally Multi-Color
- Yes
- Low Latency Mode
- Yes
- Screen saver
- Yes
- Environment Power Save function
- Yes
- TSL UMD/IMD Support via:
- Yes, Serial RS485
- Function Keys
- 2
- Direct Input Channel buttons
- Yes
- Auto Aspect
- Yes, Analogue and Digital sources
- OPERATION KEY-LOCK
- Yes
- Operation LED Dimmer (Buttons)
- Yes
- Direct Brightness/Contrast/Color control
- Yes
Measurement and indication Tools
- Waveform
- Yes
- Waveform enlargement
- Yes
- Waveform subs
- R/G/B, Y/PB/PR, and Y/CB/CR. peak brightness with Over-level function.
- Vector-scope
- Yes
- Vector-scope enlargement
- Yes
- Vector-scope subs
- video,component, SDI (SD/HD) input signals.
- Histogram
- Yes
- Audio Level Meter
- Yes
- Audio Level Meter Channels
- 16
- Audio Level Meter subs
- Over Level Indication plus Lissajous Meter
Calibration and Color settings
- Preset Color Temperature 9300K
- Yes
- Preset Color Temperature 6500K
- Yes
- Preset Color Temperature 5600K
- Yes
- Preset Color Temperature USER:
- Yes
- Manual calibration of Color Temperature (gain or/and cut-off)
- Yes
- External Auto-Calibration (Software Tool)
- Yes
- External Colormetrie Sensor needed
- Yes, Minolta CA-210, X-Rite i1 Display 2, i1 Display 3/Pro (OEM version), Jeti Specbos (with FTDI driver v.2.8.24), Datacolor Spyder4
- Calibration Hints:
- Free Calibration Software in our Support area
- Gamma Levels
- 2.2/ ,2.35,/2.45,/2.6
- Adjustable Back-Light
- Yes
Dedicate Timing Information
- Lip-sync. Processing time:
- less 1 Frame
MTBF Life-Times
- MTBF Notes:
- MTBF Data are based on theoretical Mathematics-calculations, the values therefore are just a guess of reference life time estimation.
- MTBF Panel (Back-light) :
- 30000 hours
- MTBF electrical:
- 0 hours
Power and Enviroment Spec´s
- Power AC
- Yes
- DC Connector Type:
- Power consumption
- 0.33 Ampere /AC
- Operation Temperature in Celsius
- 5C to 35C
- Operation Humidity:(Non-Condensing)
- 20% to 80%
- Storage Temperature in Celsius
- -20C to 60C
- Storage Humidity (Non-Condensing)
- 10% to 90%
Mechanical Informations
- VESA Mount
- Yes
- VESA Format
- 100x100
- VESA Screw Type in Metric
- M4x4mm
- Rack-mount into 19" Format
- Yes, optional
- Dimensions W x H x D in mm
- W:430mm / H:309mm / D:102mm
- Weight (without stand) in Kg:
- 5.8Kg
- Weight in Kg:
- 8.3Kg
