HDMI HD-Video to HD/SD-SDI Converter (1080P) also embeds audio from HDMI signal into HD-SDI signal. Supported input formats: 480i, 576i, 720P50/ 59,94/ 60, 1080i50/ 59,94/ 60 and 1080P50/ 59,94/ 60

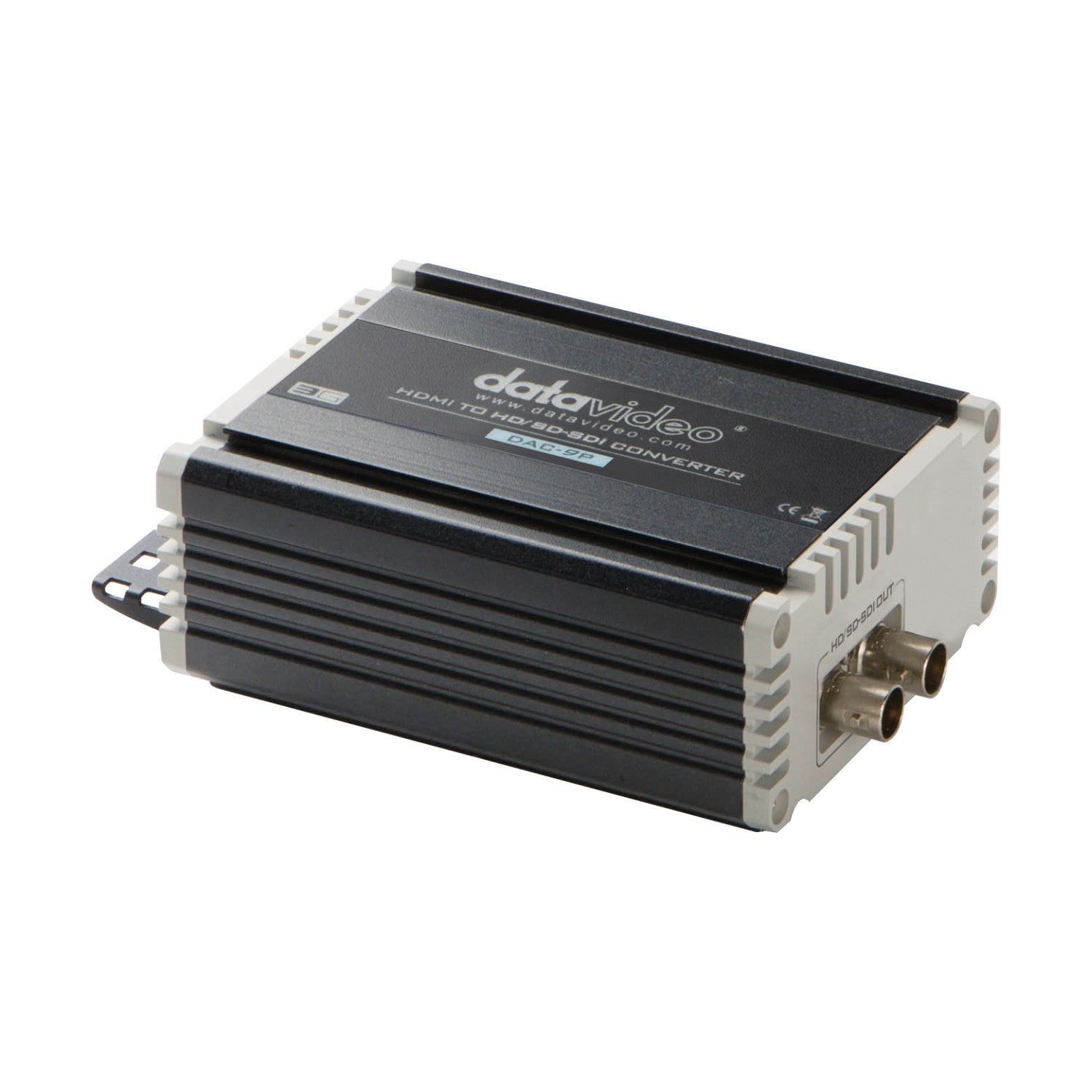

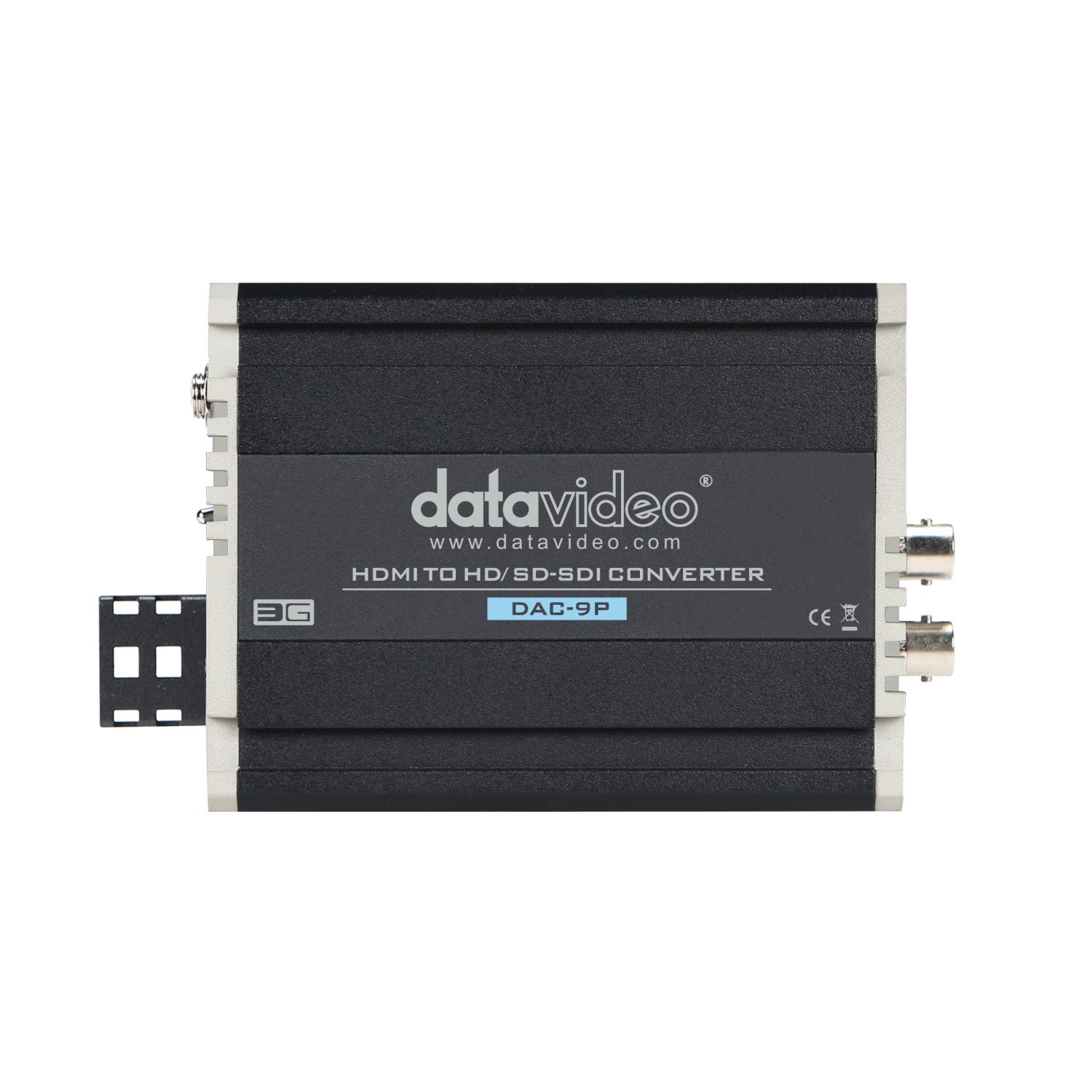

The DAC-9P supports HDMI to 3G/HD/SD-SDI conversion, allows users to connect HDMI devices to professional SDI equipment, like video switchers or recorders.
By using the DAC-9P, user can convert HDMI to High Definition & Standard Definition SDI and take advantage of the long-distance transmission, high quality and affordable connectivity that SDI cables offer.
The DAC-9P embeds the audio from HDMI into the SDI signal so only one single cable is needed.
Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

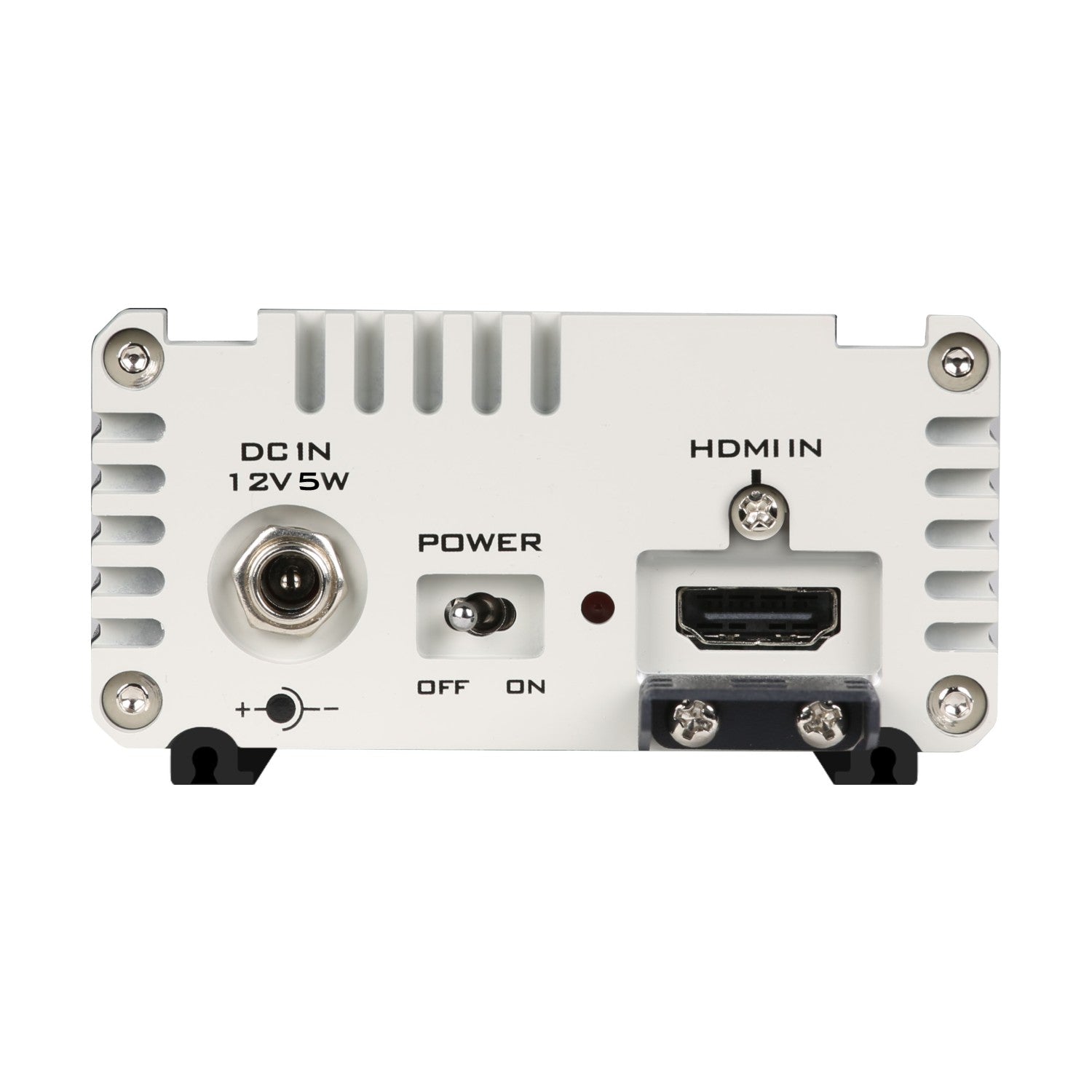

1x HDMI
----

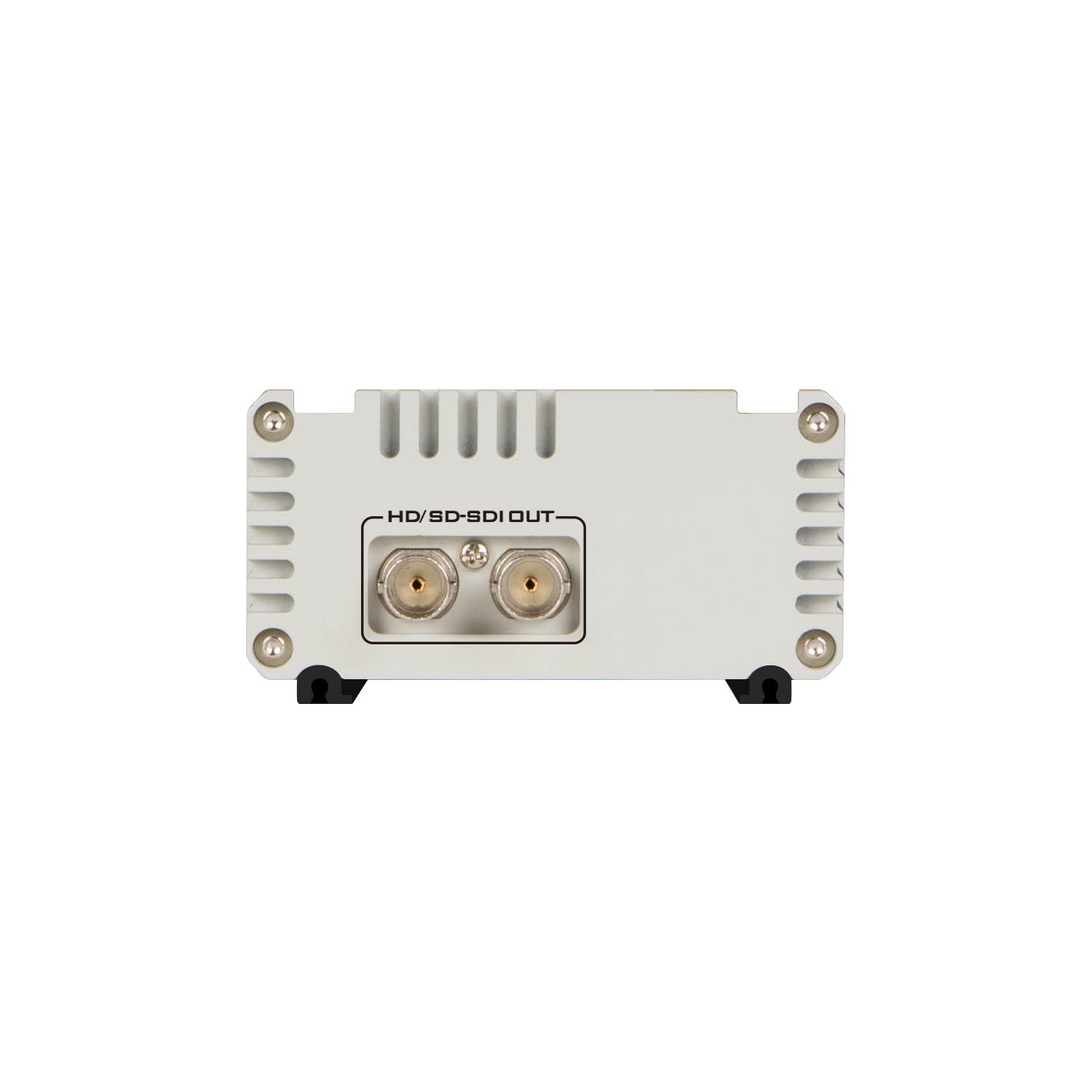

2x 3G/HD/SD-SDI
with embedded Audio
2x HDMI Audio embedded
2x SDI Audio embedded
----
----
1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz),
720p (50/59.94/60Hz),
576i (PAL), 480i (NTSC)
Automatically matches the SD, HD and
3G HDMI video input
----
----
Yes
----
112 x 85 x 45 mm
0.3 kg
0~40 °C
DC 12V, 5W
1 x DAC-9P
1 x AD Switch DC 12V
