Nu beschikbaar! Een van 's werelds meest compacte en geavanceerde switchers. De nieuwe ATEM 4 M/E Broadcast Studio 4K van Blackmagic Design.

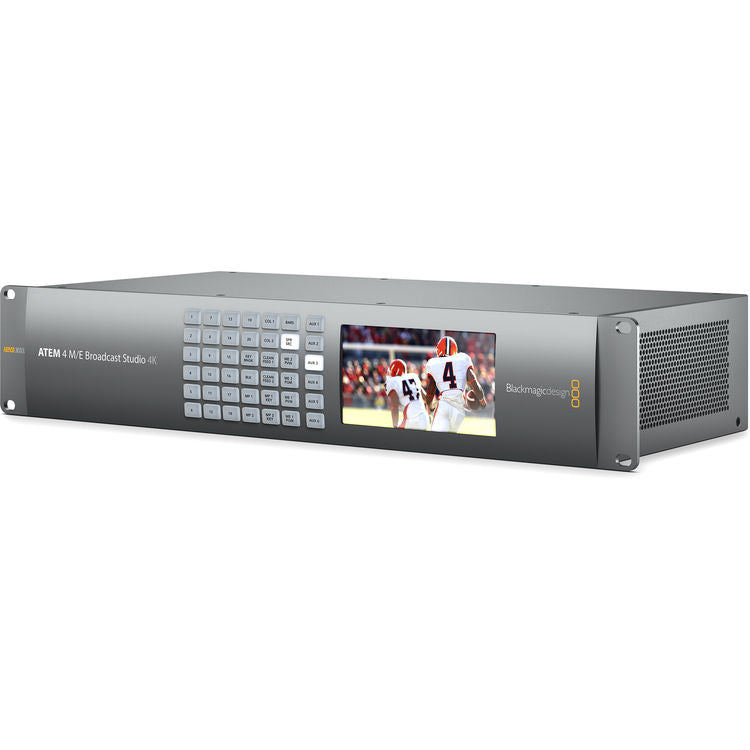

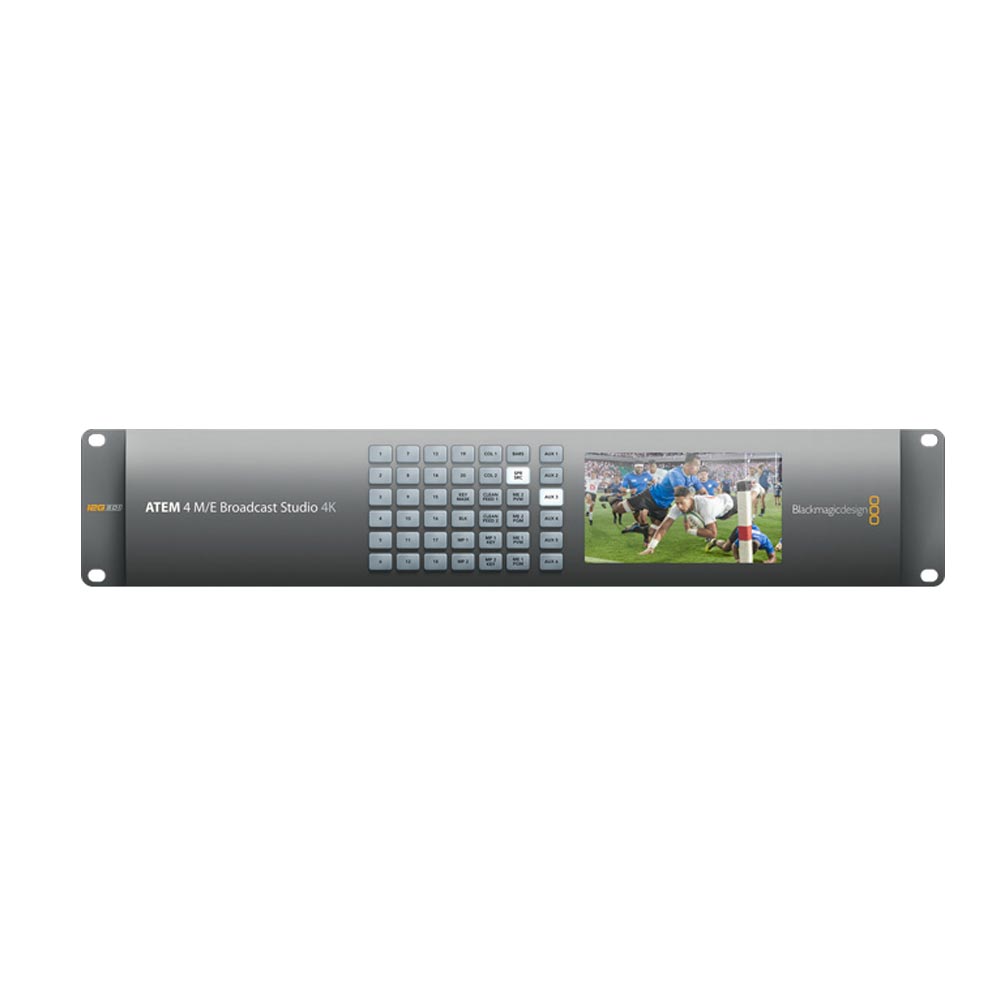

Get one of the world’s most compact and advanced switchers with the new ATEM 4 M/E Broadcast Studio 4K. You get an incredibly high performance live production switcher designed to work with the latest formats and high frame rates, all the way up to Ultra HD 2160p59.94! You get 16 next generation ATEM Advanced Chroma Keyers with 4 per M/E, perfect for advanced work and virtual sets. As the most advanced ATEM switcher, this model also includes the latest technology and features such as 2 Ultra HD multi viewers, full 2D DVE, built in SuperSource compositing engine with 4 picture in picture DVE's, full re-synchronization on each 12G-SDI input and much more! The multi rate 12G-SDI connections automatically switch between all HD and Ultra HD formats up to 2160p59.94 with a single BNC cable! Even if you're not working in Ultra HD now, the ATEM 4 M/E Broadcast Studio 4K has all the power and features for the highest end live production work, while being Ultra HD ready the instant you need it!
20
13
6
1.5G, 3G, 6G, 12G
2 x XLR. 2 x RCA.
2 x XLR Program 2 x XLR Monitor.
1 x XLR Timecode in and 1 x XLR Timecode out.
Tri-Sync or Black Burst.
On all 20 inputs.
20 x 10-bit HD/Ultra HD 4K switchable. 2 channel embedded audio.
1 x XLR Timecode and 1 x XLR Talkback.
2 Ch embedded into SDI output on all outputs.
1 x XLR Timecode and 1 x XLR Talkback.
3 x 10-bit HD/Ultra HD 4K switchable.
1 x 10-bit (From Ultra HD 4K to HD).
1 x 10-bit HD/Ultra HD 4K switchable.
2
2
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
1 x USB 2.0 port.
None
720p50, 720p59.94,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94
1080i50, 1080i59.94
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94
SMPTE 292M, SMPTE 424M, SMPTE 2082.
4:2:2
10-bit.
REC 601, REC 709, REC 2020.
16 with Chroma/Linear/Luma key.
2
16
None
None
19
1 Stinger, 1DVE .
26
19
2
1
Software or optional hardware panel.
16
Red for program and green for preview indication.
Yes
2 x 10 Views for 20 total views.
Select HD or Ultra HD.
4
64 with fill and key.
2 with fill and key.
3200 frames.
1440 frames.
360 frames.
PNG, TGA, BMP, GIF, JPEG and TIFF.
TGA Sequence.
WAV, MP3 and AIFF.
Minimum monitor resolution of 1366 x 768.
Built in HD LCD monitor for video and 42 LED buttons for Aux switching.
< 7 Lines
24 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video.
Level and Peak metering.
Master gain control.
Dedicated analog outputs for monitoring.
Yes, program x 1.
ATEM Software Control Panel included free for Mac 10.12 Sierra, Mac 10.13 High Sierra or later and Windows 8.1 64-bit or Windows 10 64‑bit.
Using USB 2.0 connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 and 10.
2 x Internal 100 - 240 AC.
300W
2 Rack Unit Size.
0° to 40° C (32° to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing
