De BirdDog P4K is het echte werk. Een enorme 1” Sony Exmor R CMOS-sensor met achtergrondverlichting en 14,4 miljoen effectieve pixels stellen P4K in staat om verbluffende foto's te leveren in 4K-resoluties met volledige bandbreedte NDI.

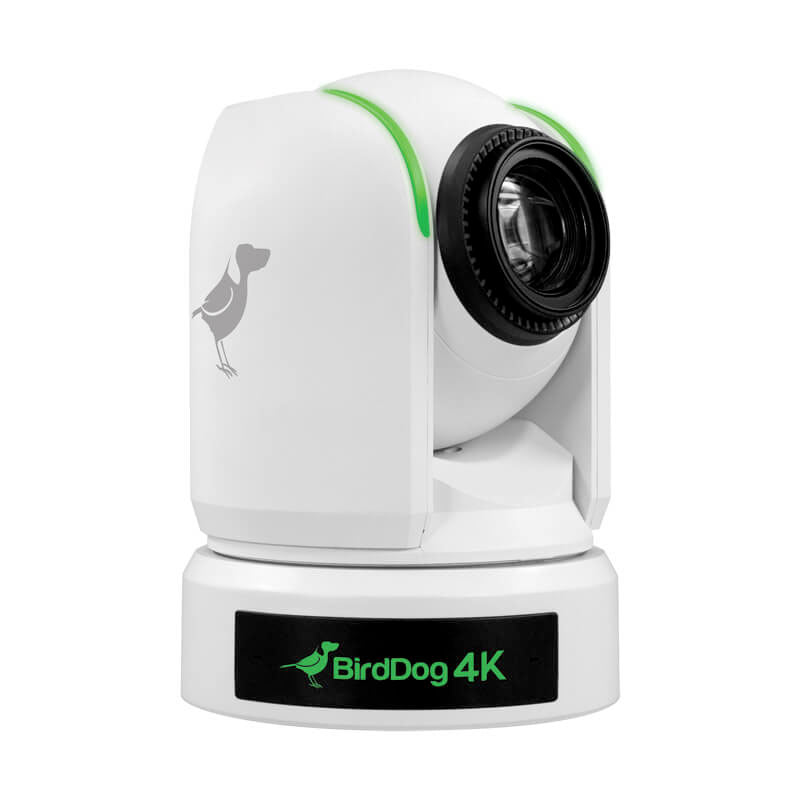

P4K is the real deal. A huge 1” Sony Exmor R CMOS back lit Sensor and 14.4 million effective pixels enable P4K to deliver stunning pictures in 4K resolutions with Full Bandwidth NDI. Excellent light sensitivity makes P4K perfect for all broadcast applications, sports, remote studios, newsrooms, house of worship and any shoot where quality matters.
The best images come from the best sensors and the P4K is built exclusively around the best sensor in its category. The massive 1” Sony Exmor R CMOS backlit sensor delivers truly stunning pictures in all shoot modes and frame rates whether in HD or 4K.
In the world of NDI® there are two flavours, NDI® and NDI|HX. NDI® is a variable bit rate, I-Frame codec that is reaches around 140Mbits at 1080p60 and is visually lossless. NDI|HX is a compressed, long-GOP, H.264 variant that reaches around 12Mbits at 1080p60. P4K is a Full NDI® camera
P4K can communicate directly to BirdDog Cloud without the need for a computer running Cloud Core. Simply plug the P4K into your network and configure it through BirdDog Cloud Command to control all functions of P4K from literally anywhere in the world. Roads? Where we’re going you don’t need roads.
P4K is a PTZ designed for the most demanding live production shoots and supports all the traditional frame rates you would expect including 29.97 but now you can use your PTZ as a camera for TVC’s, drama, and shoot 24p for that wonderful cinematic look.
Camera |
|
| Image Sensor | 1.0-type back-illuminated Exmor R CMOS sensor |
| Number of effective pixels | 14.2 Megapixels |
| Picture elements | 3840 x 2160, 8.29 Megapixels |
| Optical zoom | 12X |
| Digital Zoom | Digital Zoom 12X, with SRZ feature,18X zoom at 4K, or 24X zoom at FHD |
| Horizontal Angle of View Focal Length | 64.6 ̊ (Wide) – 6.1 ̊ (Tele),
f=9.3 to 111.6mm, F2.8(Wide), F4.5(Tele) |
| Min. object distance | 80mm (Wide), 1000mm (Tele) |
| Aperture | F2.8 Constant (W)~(T), 16 Steps |
| Min. Illumination | 0.5 lx (1/30 sec, 50%, High Sensitivity mode On)
2.0 lx (1/30 sec, 50%, High Sensitivity mode Off) 0.067 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode On) 0.267 lx (1/4 sec (1/3 sec), 50%, High Sensitivity mode Off) |
| Shutter Speed | 1/10000s to 1/8 (59.94/29.97) |
| Focus | Auto Focus(Trigger/Interval), Manual Focus(Variable Speed), One Push Trigger, Near Limit |
| White Balance | AUTO, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp(Fix/Auto/Outdoor Auto) |
| Exposure | Full Auto, Gain, Gain Limit, Shutter Priority, Iris Priority, Manual, Bright,
Slow Shutter, Max/Min Shutter Limit, Slow AE |
| Features | High Sensitivity, Defog mode, Backlight Compensation, HLC,
E-FLIP, Mirror, Flicker Control, Day/Night, Defog |
| WDR | YES(130dB) |
| ND Filter | YES |
| Image Stabilizer | YES |
| Color Gain | Yes (15 step) |
| Color Hue | Yes (15 step |
| Gamma | Standard/Straight/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709//Pattern |
| Gamma Level | Yes (15 step) |
| Black Level | Yes (97 step) |
| Flicker Cancel | Yes |
| Noise Reduction | On/Off (level 5 to 1 / Off, 6 steps), 2D/3D |
| S/N Ratio | ≥50db |
Mechanical |
|
| Pan Movement | Horizontal:±350 degrees continuous pan (Zoom Adaptive Speed Range: 0.05°~100°/S ) |
| Tilt Movement | Vertical:+90 degrees to -30 degrees (Zoom Adaptive Speed Range: 0.05°~50°/S) |
| Preset Position | 0~5 Level Adjustable |
| Preset Speed | 0~5 Level Adjustable |
| Preset Memory | YES, ( Picture Profile Preset-Preset Memory for image parameters) |
| Quietness | 45db |
| Home Position | Supported |
| Environmental | Indoor |
Interface |
|

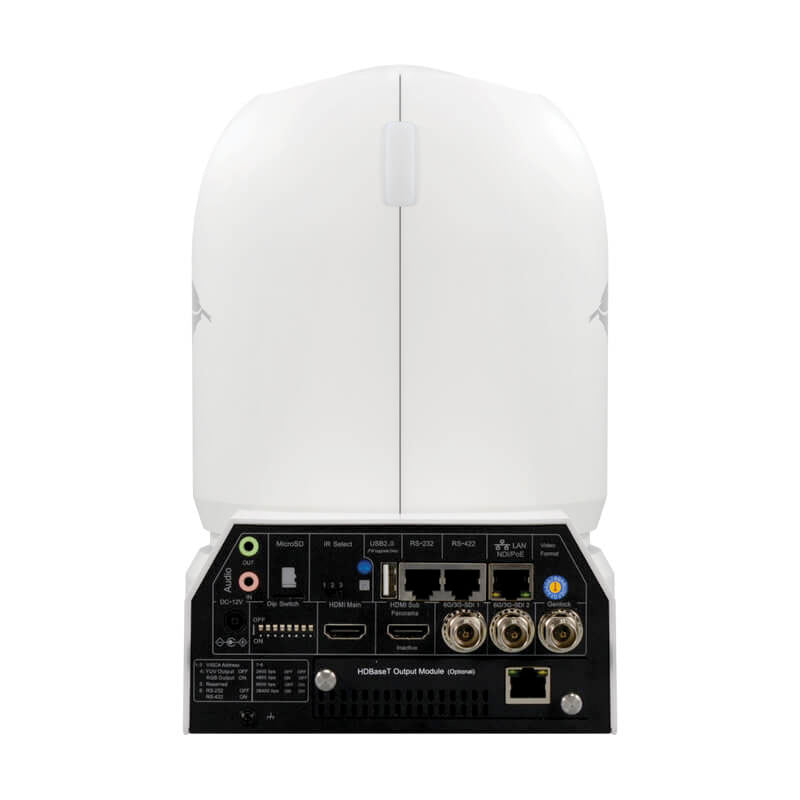

| 4K Video Output | Main 4K HDMI Type-A (x1)
6G-SDI (x2) or Dual Link 3G-SDI(2SI only) x2 |
| HD Video Output | Main HD HDMI Type-A (x1)
3G-SDI x2 |
| HDMI Color Space | YCbCr, 4:2:2 RGB, 4:4:4 |
| NDI Video Encode | Full bandwidth NDI, NDI HX2 long-GOP |
| NDI Video Decode | Full bandwidth HD NDI |
| NDI Version | NDI v4.0 (Firmware upgradeable |
| IP Video Stream | UP to 4K/30 and 1080p60
h.264/h.265 HEVC |
| Camera Control Interface | RS232/RS-422/RS485(RJ45 x2), NDI/IP Control (RJ45), IR Remote Control |
| Control Protocol | NDI, VISCA, VISCA Over IP |
| LAN | RJ45X1(1000Mb), NDI/IP video streaming, System upgrade, PoE(IEEE802.3bt |
| External Sync. Input | BNCX1, 75Ω, HD 3-level sync, SD Black Burst |
| Audio I/O | Audio input x1, Audio output x1, 3.5mm audio jack |
| Audio Output | Embedded with main HDMI, 24bit Stereo
Embedded with SDI, 24bit Stereo Embedded with NDI |
| Tally Light | Yes, Front and Back |
Environmental |
|
| Mount | Ceiling mount, Wall mount, Tripod |
| Operating Temperature | -10 to +40 (°C), 32 to 104 (°F) |
| Operating Humidity | ≤80% Suitable for Use |
| Power Input | 12VDC, PoE++ (IEEE 802.3bt) |
| Power Consumption | 22W |
| Dimension | 165x196x247mm |
| Weight | 3.4kg |
