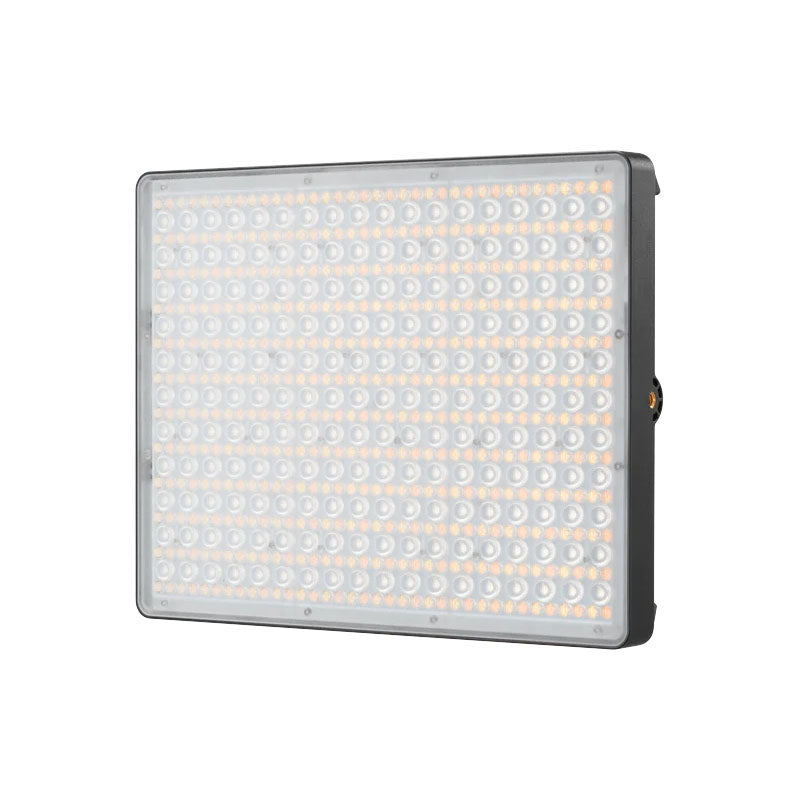

The amaran P60c is an RGBWW full-color LED Panel designed for content creators, videographers, and indie filmmakers. Its optical design (45°) allows the P60c to use its 60W RGBWW LED chipset to produce high-intensity light output, measuring a stunning 5,900+ lux at 1 meter (5600K). In addition, using the control knobs or the built-in Sidus Link App integration, users can adjust the color temperature (2500K-7500K) or the saturated color using HSI.
This robust fixture can also utilize 10 built-in lighting effects and up to 46 color gel presets, in addition to the 4 user-configurable preset buttons.
Using the Sidus Link app, users can also utilize specialized tools such as Source Match, Color Picker, and Custom FX.
The amaran P60c also accomplishes these feats while maintaining excellent color rendering scores of CRI ≥95 and TLCI ≥96.
Complete power solutions. The amaran can be powered by two NP-F style batteries for over an hour, in addition to traditional AC power, making it the perfect portable and flexible lighting solution. When connected to AC power, the P60x can also charge NP-F style batteries, making it the perfect multi-tool for content creators.
MAIN FEATURES
- 60W Output RGBWW Lensed LED Pane
- 78W Max Power Draw
- Tunable CCT from 2,500K to 7,500K
- 5,900 lux @ 1 meter (5600K)
- CRI: 95+, TLCI: 96+, SSI (Tungsten): ≥83, SSI (D56): ≥74
- Stepless Dimming from 0-100%
- Sidus Link App Compatible
- Built-in Lighting FX: Lightning, Paparazzi, Strobe, Cop Car, Fireworks ,
Pulsing, Faulty Bulb, Fire, TV , Party Lights

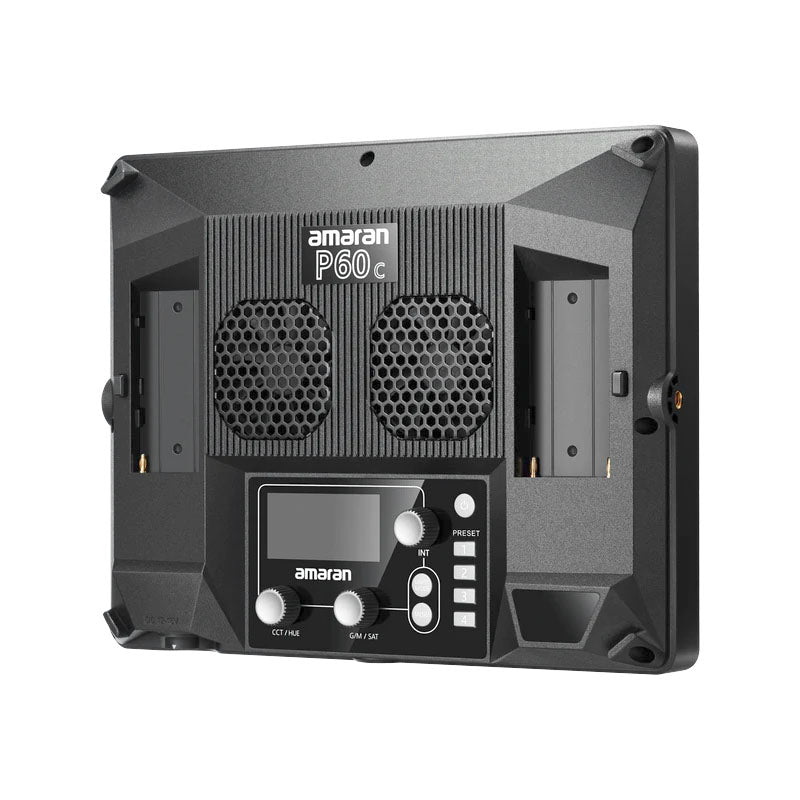

- Click Control Knobs to Cycle CCT & Brightness Presets
- Tool-less Soft Box with Light Control Grid (45°)
SPECIFICATIONS
| CCT |
2,500K~7,500K |
| G/M Adjustable |
±1.00G |
| CRI |
≥95 |
| TLCI |
≥96 |
| CQS |
≥96 |
| SSI (Tungsten) |
≥83 |
| SSI (D56) |
≥74 |
| TM-30 RF (Average) |
94 |
| TM-30 RG (Average) |
103 |
| Beam Angle ( No Accessory) |
45° |
| Max Power Output |
60W |
| Max Power Consumption |
≤78W |
| Operating Current |
4.5A |
| Voltage (AC Power Supply) |
15V DC |
| Voltage (D-Tap Battery) |
12-16.8V DC |
| Voltage (NP-F Battery) |
6.5V-8.4V DC |
| Battery Charging (Type) |
Sony NP-F Style |
| DC Input |
2-Pin DC Self-locking Waterproof |
| AC Power Cable |
Self-locking IEC C13 AC Power Cable (1.5m) |
| Operating Temperature |
-20°C ~ 45°C / -4°F ~ 113°F |
| Control Methods |
On-board, Sidus Link App |
| Connectivity |
Bluetooth 5.0 (Sidus Mesh) |
| Bluetooth Operating Range |
≥80m / 262.5ft |
| Firmware Upgradeable |
Sidus Link OTA |
| Display Type |
OLED |
| Cooling Method |
Active Cooling |
| Mounting |
1/4-20in * 3, Tilting Support Column |
| Estimated LED Lifetime (L70) |
50,000 Hours |
| Estimated Color Shift Over Lifetime (CCT) |
2% over 6,000 Hours |
| Certifications |
CE, FCC, cTUVus, KC, NCC, ROHS |
DIMENSIONS
| Fixture |
27.1*21.3*4.34cm / 10.67*8.39*1.7in |
| Aperture |
26.90 * 21.00cm / 10.5*8.2in |
| Soft Box (Collapsed) |
20*20*2.5cm / 7.8*7.8*.98in |
| Soft Box (Built) |
41*34*10cm / 16.1*13.3*3.9in |
| Carrying Case |
27.4*21.8*9.5cm / 10.79*8.58*3.74in |
WEIGHT
| Fixture |
1.880kg / 4.145lbs |
| Soft Box |
0.17kg / .37lbs |
| Power Supply |
0.50kg / 1.1lbs |
| Mounting Bracket |
0.24kg / .53lbs |
PHOTOMETRICS
| CCT |
Distance |
No Softbox |
With Softbox |
| |
.5M |
17,400 lux / 1,616 fc |
3,750 lux / 349 fc |
| 2500K |
1M |
5,000 lux / 465 fc |
1,017 lux / 95 fc |
| |
2M |
1,300 lux / 121 fc |
280 lux / 26 fc |
| |
3M |
594 lux / 55 fc |
130 lux / 12 fc |
| |
|
|
|
| |
.5M |
18,500 lux / 1,719 fc |
4,010 lux / 373 fc |
| 3200K |
1M |
5,200 lux / 483 fc |
1,116 lux / 104 fc |
| |
2M |
1,400 lux / 130 fc |
302 lux / 28 fc |
| |
3M |
632 lux / 59 fc |
141 lux / 13 fc |
| |
|
|
|
| |
.5M |
19,500 lux / 1,812 fc |
4,240 lux / 394 fc |
| 4300K |
1M |
5,600 lux / 520 fc |
1,182 lux / 110 fc |
| |
2M |
1,460 lux / 136 fc |
318 lux / 30 fc |
| |
3M |
659lux / 61fc |
149 lux / 14 fc |
| |
|
|
|
| |
.5M |
20,000 lux / 1,858 fc |
4,540 lux / 422 fc |
| 5600K |
1M |
5,900 lux / 548 fc |
1,242 lux / 115 fc |
| |
2M |
1,550 lux / 144 fc |
340 lux / 32 fc |
| |
3M |
705lux/66fc |
160 lux / 15 fc |
| |
|
|
|
| |
.5M |
22,000 lux / 2,044 fc |
4,830 lux / 449 fc |
| 7500K |
1M |
6,300 lux / 585 fc |
1,344 lux / 125 fc |
| |
2M |
1,650 lux / 153 fc |
360 lux / 33 fc |
| |
3M |
750lux/70fc |
170 lux / 16 fc |
- 1x Amaran P60c
- 1x Amaran P60c Soft Box
- 1x Amaran P60c Soft Box Light Control Grid
- 1x AC Power Supply
- 1x AC Power Cable
- 1x Tilting Mounting Support with ¼-20in & 3/8-16in Spigot
- 1x Amaran P60c Carrying Case
