Aputure F10 Barn Doors
De Aputure F10 Barndoor is ontworpen voor de F10 Fresnel Bowens Mount Modifier. De F10 Barndoor heeft 8 bladen om het licht van de grote opening goed af te schermen.
De Aputure F10 Barndoor is ontworpen voor de F10 Fresnel Bowens Mount Modifier. De F10 Barndoor heeft 8 bladen om het licht van de grote opening goed af te schermen.

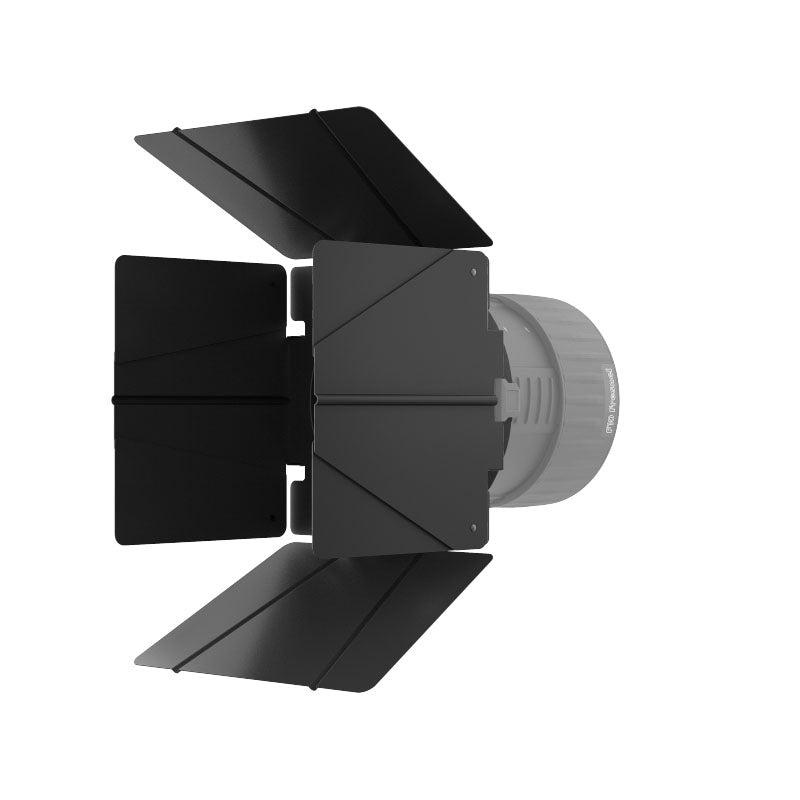

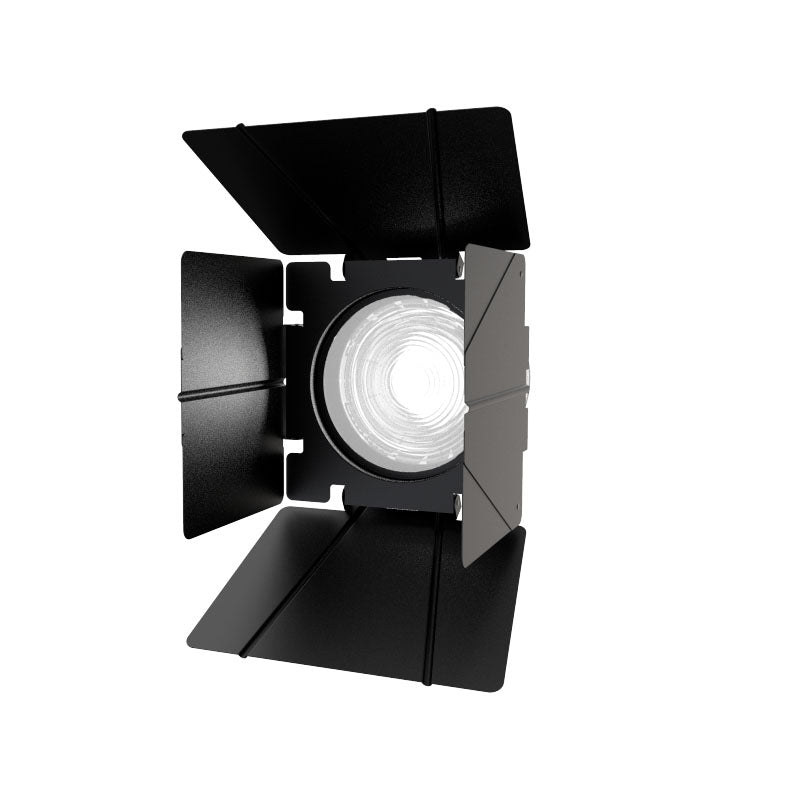

The F10 Barn Doors are designed for the F10 Fresnel, and slide into its standard 13.1-inch (333mm) Drop-In Accessory Slot. Like with traditional Fresnel Fixtures, the leaves on the F10 Barn Doors are designed to be large enough to properly shape and control the output of an industry-standard 10-inch Fresnel.

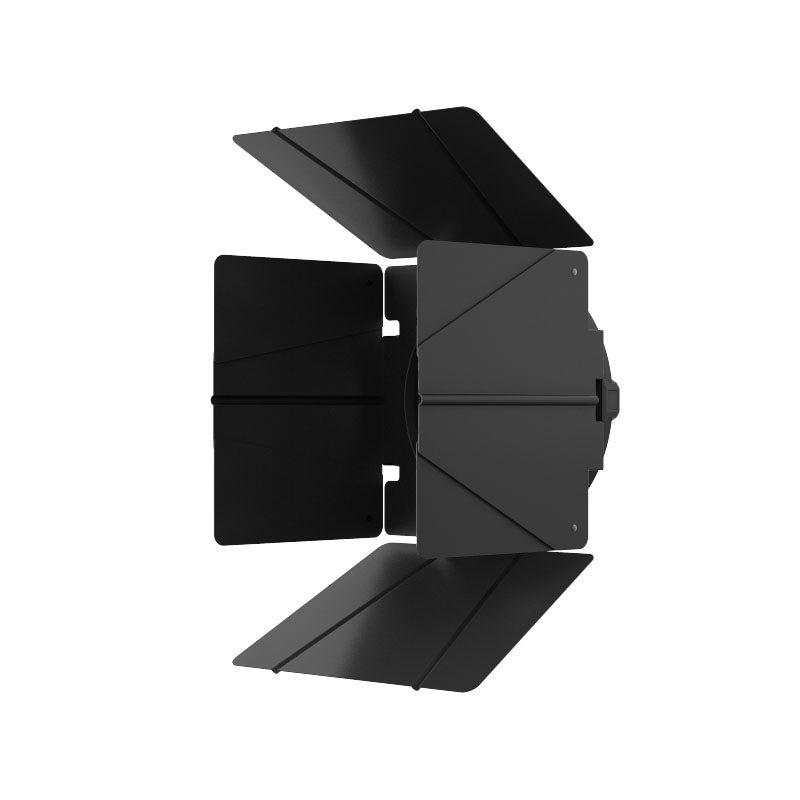

8-leaf design. Unlike traditional Fresnel Barn Doors, the F10 Barn Doors feature an 8-Leaf design, including four smaller "helper flags" that can rotate in and out, and adjust the shape of the output based on your needs.

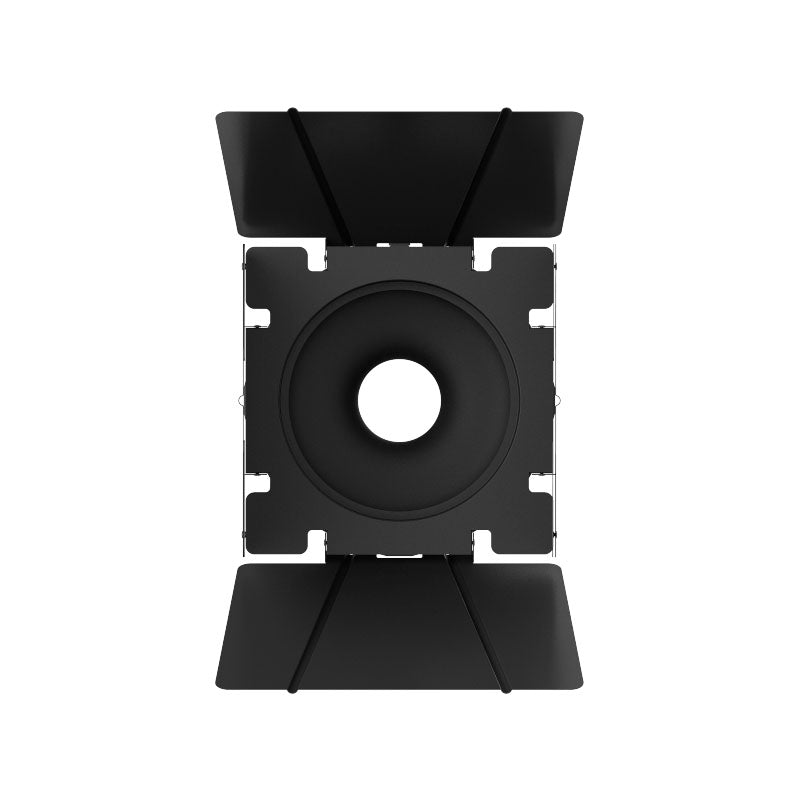

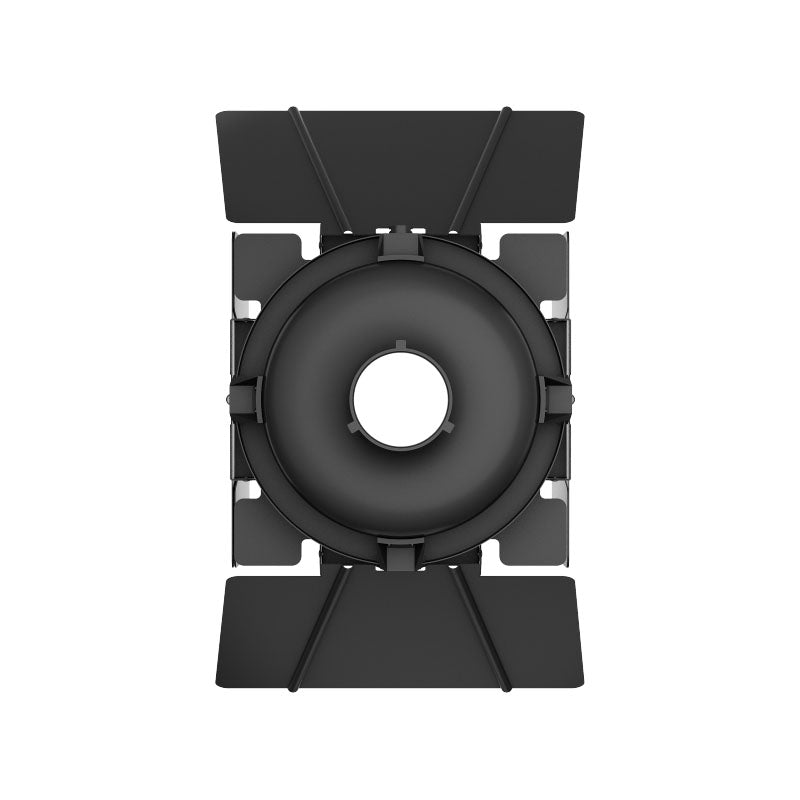

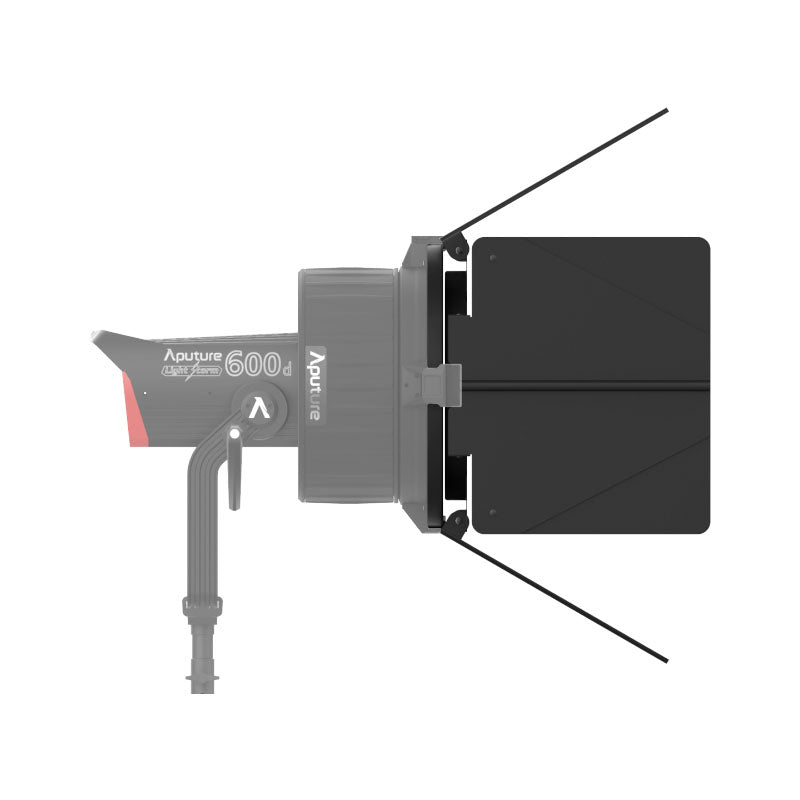

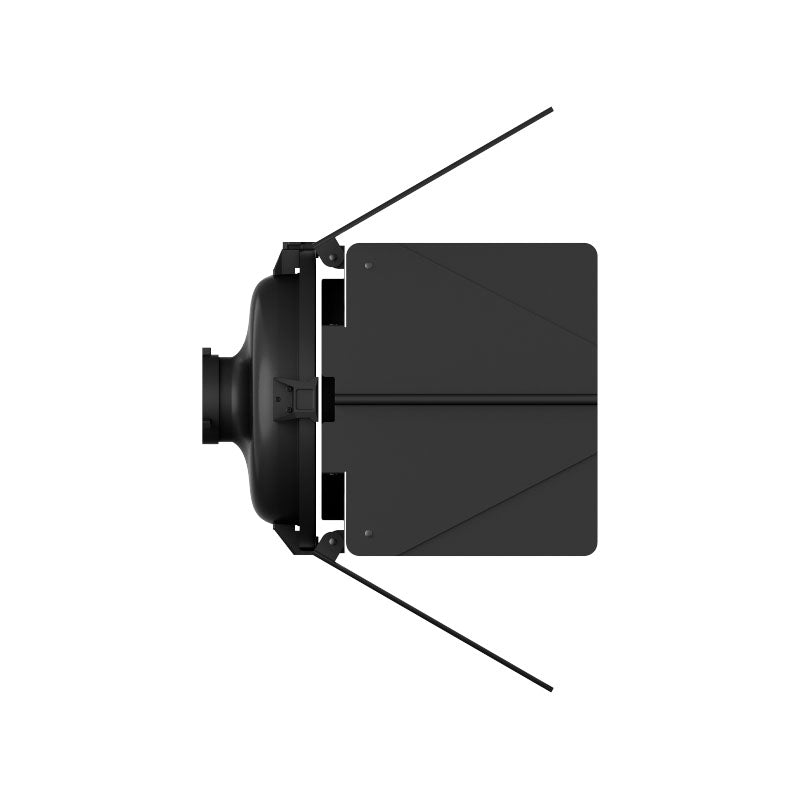

Negative reflector. The F10 Barn Doors include a Negative Black Reflector Dish, which simultaneously allows the F10 Barn Doors to be mounted directly onto a Bowens Mount light fixture. It also minimizes the size of the light-emitting source to just the LED chipset to create sharper shadows.
Accessory Slot Diameter | 332.88mm / 13.106in |
Accessory Mount | Bowens Mount |
Dimensions (Barn Doors w/ Reflector Dish [Closed]) | 406.76*344*173.15mm / 16.014*13.543*6.817in |
Dimensions (Barn Doors w/ Reflector Dish [Open]) | 898*898*158.3mm / 35.354*35.354*6.232in |
Dimensions (Barn Doors w/o Reflector Dish [Closed]) | 406.76*344*74.85mm / 16.014*13.543*2.947in |
Dimensions (Barn Doors w/o Reflector Dish [Open]) | 898*898*60mm / 35.354*35.354*2.362in |
Dimensions (Black Reflector Dish) | 346*340.46*118.8mm / 13.622*13.404*4.677in |
Weight (F10 Barn Doors) | 2640g / 5.820lbs |
Weight (Black Reflector Dish) | 1060g / 2.337lbs |
