De SE-4000 is een switcher voor liveproductie met 8 ingangen, die echte 4K60/50P-videoresolutie ondersteunt, met verschillende video-ingangen en -uitgangen, waaronder 12G-SDI en HDMI 2.0-interface, waarmee u een geavanceerd en professioneel live-evenement kunt produceren.

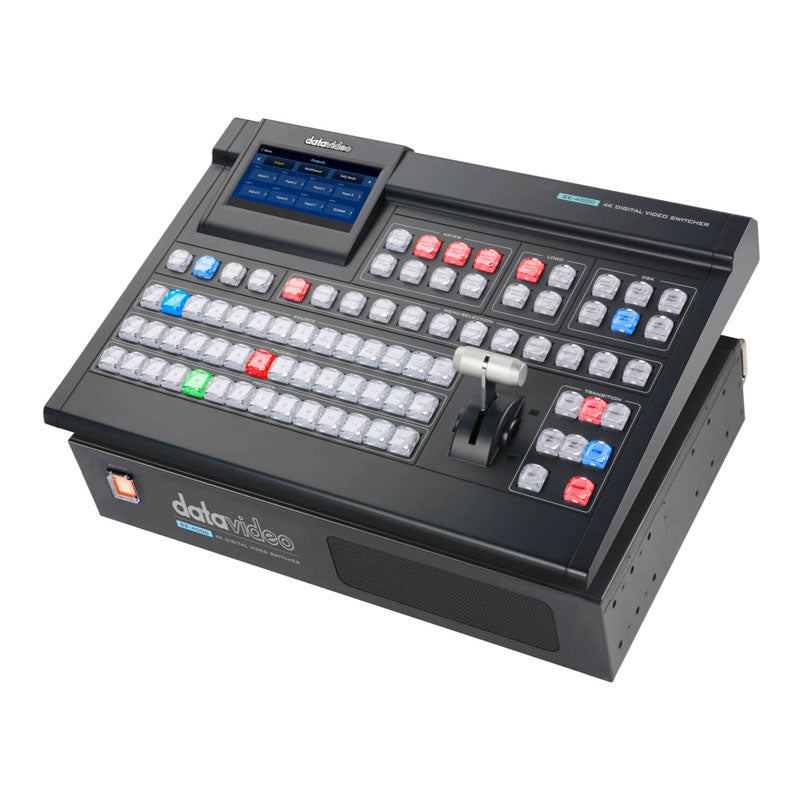

The SE-4000 is an 8-input live production switcher, which supports real 4K60/50P video resolution, with variety of video inputs and outputs, including 12G-SDI and HDMI 2.0 interface, help you produce a sophisticated and professional live event.

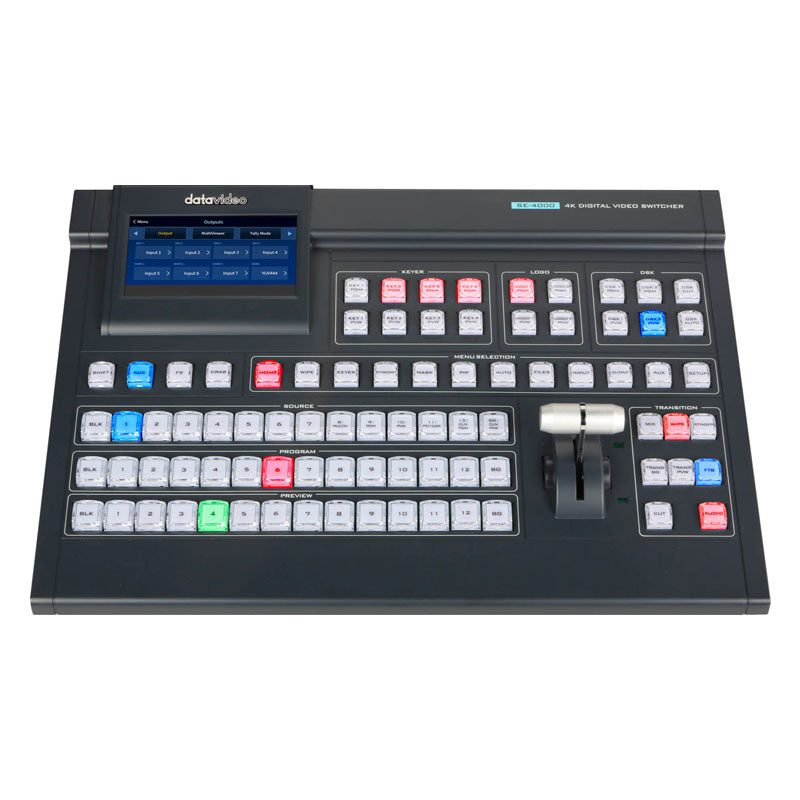

With User friendly interface on 5-inch LCD touch panel, it is very easy to operate and setup. The SE-4000 switcher also has powerful, easy-to-use effects, such as Chroma Key, Luma Key, DSK, PIP, DVE, Wipe Generator, still stores, and logo insertion.
Crosspoint assignment (XPT) grants you the option of rerouting each physical input and output to any of the available buttons.
SE-4000's base unit can be easily mounted into a standard 19" rack. The power button on the front panel makes it easy to turn on and off the switcher.
The SE-4000 is Datavideo 4K switcher with 4K support on every input. Additionally, it has a 5" LCD touch panel to adjust all the setting without any laptop or app needed.
The SE-4000 is designed for large scale event production. The switcher equips with intuitive and reliable physical buttons.
Support UHD 4K60/50p signals on inputs and outputs. It also has built-in input scaler, for up conversion on each available input.
SE-4000
4K & HD
Input:
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
VGA, XGA (1024 x 768), SXGA (1280 x 1024),
UXGA (1600 x1200), WUXGA (1920 x 1200)
Output:
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
SDI: 4:2:2 10-bit
HDMI: YUV 4:2:2 10-bit, RGB: 4:4:4 8/10-bit
YES
Total 8 live inputs (select 8 from 12)
8 x 12G-SDI
4 x HDMI
----
4 via HDMI
4 x 12G-SDI
3 x HDMI
All assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12
----
HDMI & SDI assignable
4 x Analogue XLR
2 x Analogue XLR
Input 4 channels, Output 4 channels
Up to 16 fields or 8 frames per channel
Yes
4
Yes, CG-200 software free download
4x Keyer support Chromakey/ Linear/ Luma Key
2x DSK support Lumakey & Linear key (Key / Fill)
2
2
999+
DVE, FTB, Cut, 32 Wipe with border
Full transitions preview
Built-in Genlock
Support external sync with loop thru
1x D-sub 25pin, dual color
DVIP (Ethernet)
----
----
----
----
----
----
----
----
Ethernet
5" Touchscreen Display
2 units, 2RU rack-mount mainframe
433 x 312 x 76 mm (switcher)
432 x 252 x 88 mm (main unit)
7.1 kg
DC 12V, 108W
0~40 °C
